Mazda MX-5 NC 1.8 Stage 1 Dyno Tuning – 150HP

Dyno day with a Mazda MX-5 NC 1.8 that arrived with an incorrect intake setup causing fuel trims to exceed 30%. After correcting the airflow readings and restoring proper fuel trims, we proceeded with a full Stage 1 ECU calibration.

Vehicle Setup

  • Engine: 1.8L MZR (NC1)
  • Custom Air Intake
  • Performance Headers
  • Full 63.5mm Exhaust System
  • Factory ECU custom tuned by DMS Tuned

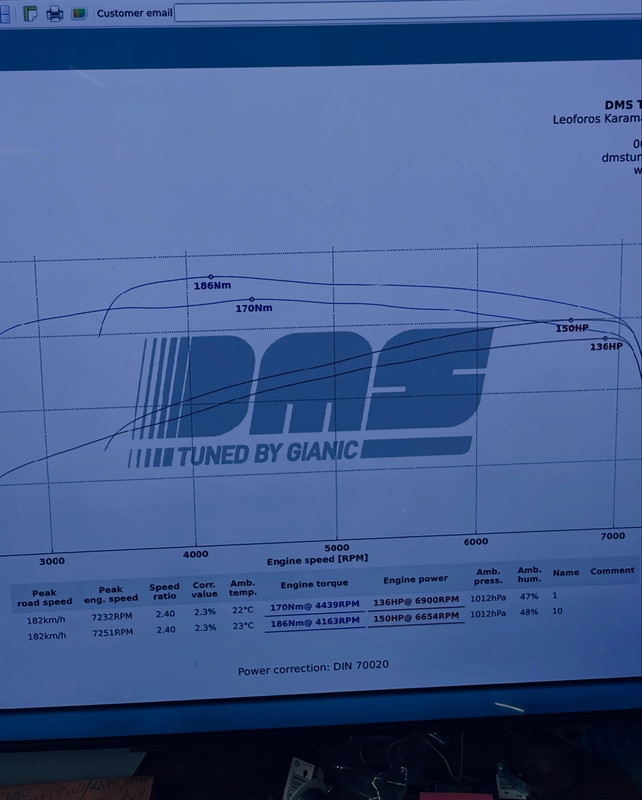

Dyno Results

  • Initial Measurement: 136HP / 170Nm
  • After Stage 1 Calibration: 150HP / 186Nm
  • Total Gain: +14HP / +16Nm

The calibration focused on correcting fuel trims, optimizing ignition timing and refining throttle response. With proper airflow modeling and balanced AFR, the engine now delivers smoother power delivery and stronger mid-range torque while maintaining reliability.

Project Gallery

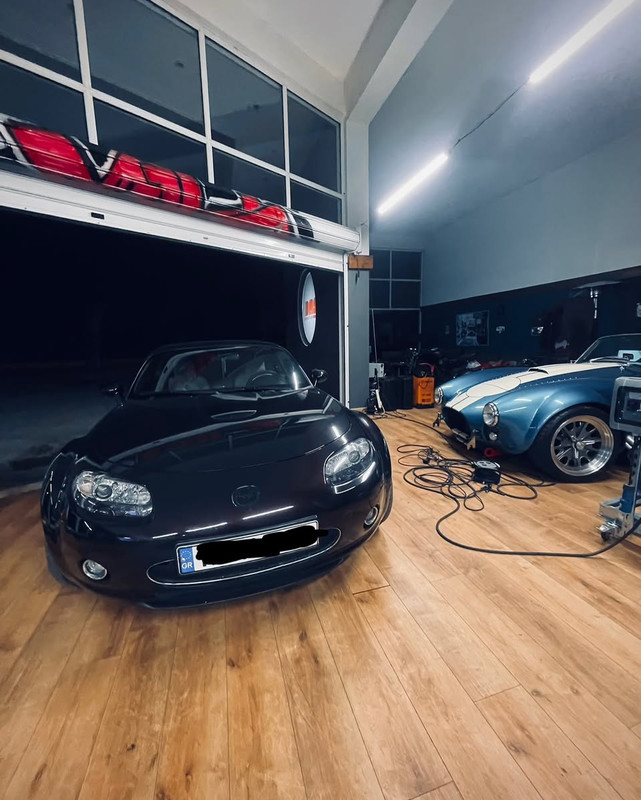

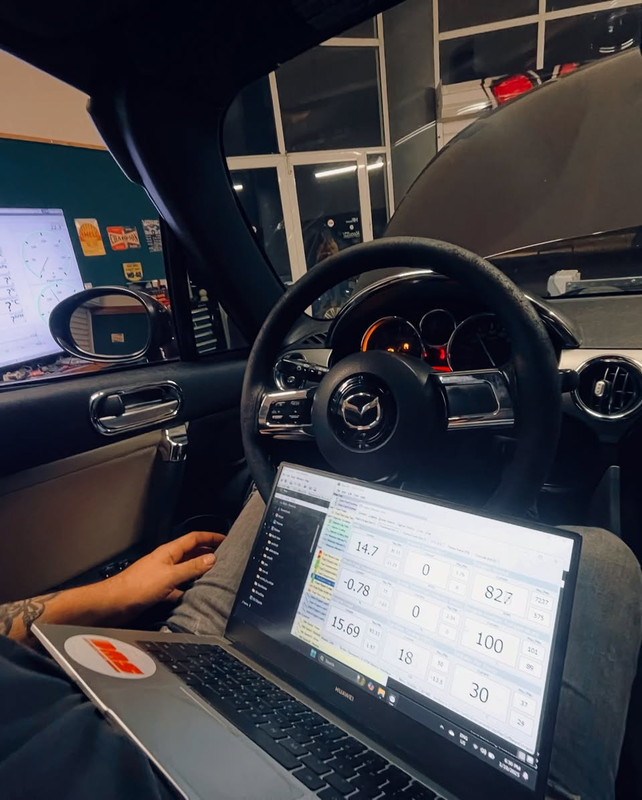

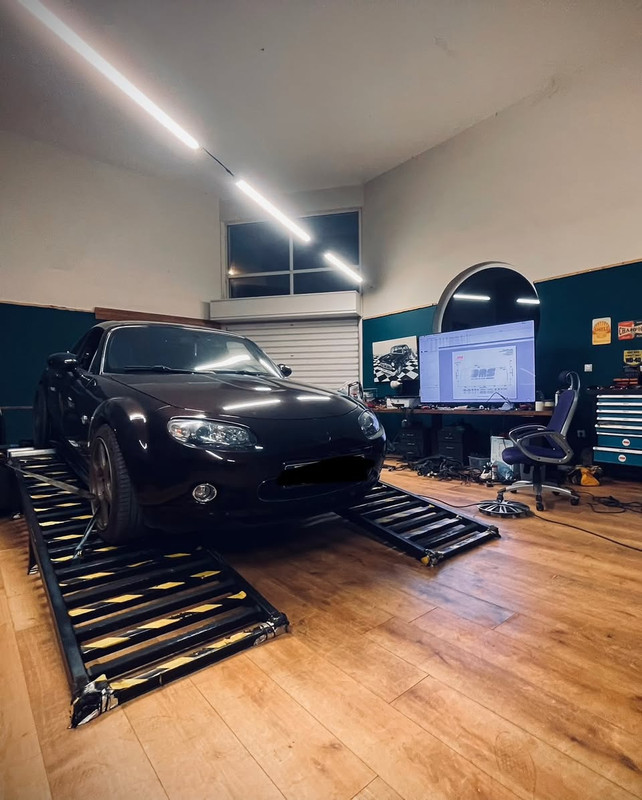

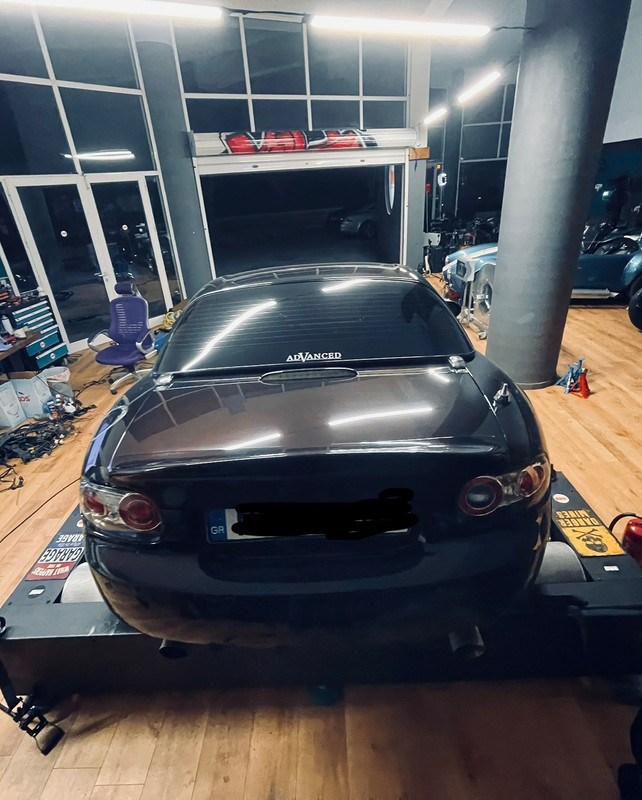

Mazda MX-5 NC 1.8 dyno tuning session by DMS Tuned MX5 NC 1.8 Stage 1 dyno graph 150HP Mazda MX5 NC1 1.8 performance upgrade DMS Tuned MX5 NC Stage 1 remap process Mazda MX5 1.8 engine bay with intake and exhaust upgrades Mazda MX5 NC 1.8 150HP dyno results by DMS Tuned
