Bosch EV14 550cc / 700cc injectors – Genuine

Bosch EV14 550cc / 700cc injectors – Genuine
€230.00

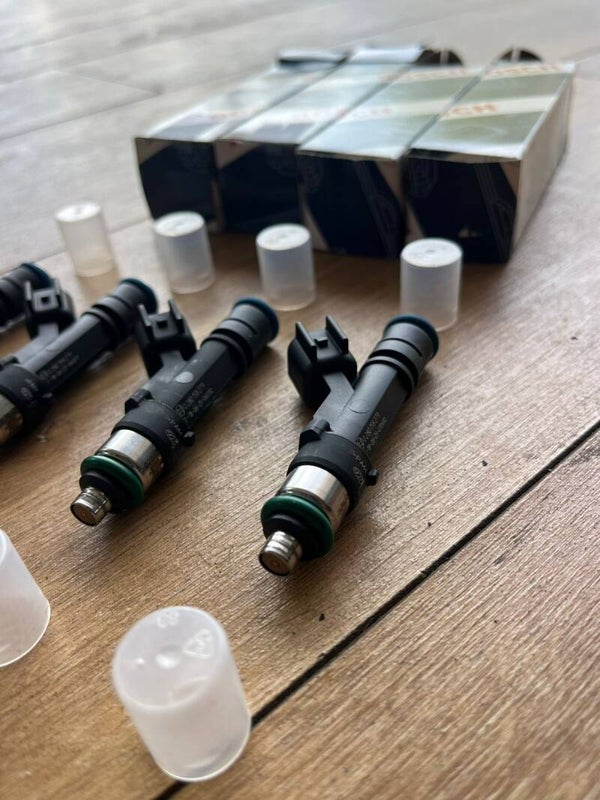

Bosch EV14 550cc / 700cc Fuel Injectors — Genuine Bosch Motorsport

OEM Precision. Motorsport Performance.
Upgrade your fueling system with the industry’s most trusted injectors — Bosch EV14. Known for their unmatched consistency, atomization quality, and reliability, these injectors are ideal for turbocharged, supercharged, and high-output naturally aspirated builds.

The 550cc model is a long-body direct-fit injector, while the 700cc variant uses the short-body EV14 design and includes top and bottom adapters for proper fitment. Both are 100% genuine Bosch Motorsport injectors, flow-matched and validated for petrol and E85 use.

Bosch EV14 550cc Long Injector (Genuine)

Key Specs (Verified)

  • Flow Rate: ~547–550 cc/min @ 3.0 bar (≈ 50–52 lb/hr)

  • Body Type: Long EV14L (Full Length)

  • Impedance: High (≈12 Ω)

  • Connector: USCAR (EV6 / Oval)

  • Spray Pattern: Dual-cone / split-stream EV14 pattern for superior atomization

  • O-Rings: 14 mm / 14 mm (top and bottom)

  • Fuels: Petrol & E85 compatible (validated EV14 internals)

  • Bosch EAN: [Available upon request]

Real-World Power Support (4-cyl @ 80% DC)

  • Boosted Petrol (3.0 bar): ~280 hp

  • Boosted Petrol (3.5–4.0 bar): ~300–323 hp

  • NA Petrol (3.0–4.0 bar): ~335–387 hp

  • E85 (3.0–4.0 bar): ~210–242 hp
    (For E85 power goals above ~260–280 hp, use the 700cc version.)

Flow Basis: 547–550 cc/min @ 3.0 bar
BSFC Reference: NA 0.50 / Boosted 0.60 / E85 0.80–0.85 lb/hr/hp

Bosch EV14 700cc Short Injector (Genuine, with Adapters)

Key Specs (Verified)

  • Flow Rate: ~700 cc/min @ 3.0 bar (≈ 67 lb/hr)

  • Body Type: Short EV14 (Compact)

  • Adapters Included: Billet top and bottom extensions for long-body fitment

  • Impedance: High (≈12 Ω)

  • Connector: USCAR (EV6 / Oval)

  • Spray Pattern: Dual-cone / split-stream EV14 design for precise atomization and clean idle

  • O-Rings: 14 mm / 14 mm (standard)

  • Fuels: Petrol & E85 compatible (Bosch-tested internals)

  • Bosch EAN: [Available upon request]

Real-World Power Support (4-cyl @ 80% DC)

  • Boosted Petrol (3.0 bar): ~350 hp

  • Boosted Petrol (3.5–4.0 bar): ~375–400 hp

  • NA Petrol (3.0–4.0 bar): ~420–465 hp

  • E85 (3.0–4.0 bar): ~260–310 hp

Flow Basis: 700 cc/min @ 3.0 bar
BSFC Reference: NA 0.50 / Boosted 0.60 / E85 0.80–0.85 lb/hr/hp

Why Choose Bosch EV14 Injectors

  • Genuine Bosch Motorsport components — not rebranded or modified clones.

  • Wide dynamic range — stable operation from idle to peak boost.

  • Superior atomization — clean burn, smoother idle, and precise fueling.

  • E85 & race-fuel ready — tested internals for all modern fuels.

  • Perfect fitment options — 550cc long-body direct fit or 700cc short-body with billet adapters.

  • Proven worldwide — trusted by tuners, racers, and OEM manufacturers alike.

Recommended For:

  • MX-5 / Miata turbo & supercharger conversions

  • High-output naturally aspirated builds

  • Reliable fueling solutions for 200–400+ hp applications
